BEST SELLER

LIXEL K1

Compact Handheld 3D Scanning Device

The LixelKity K1 is a compact, lightweight handheld 3D scanning and modeling device weighing under 1kg. It integrates dual 48MP panoramic vision modules and a 360° LiDAR for real-time generation of centimeter-level colored 3D models.

LIXEL K1

Precision engineered for one-handed capture

TECHNICAL SPECIFICATIONS

1.2cm

ACCURACY

Relative accuracy

40m

RANGE

Working range

200K

POINTS/S

Scan speed

IP54

RATING

Weather protection

<1kg

WEIGHT

Ultra-lightweight

1.5hr

RUNTIME

Battery life

FULL SPECIFICATIONS

GENERAL

Weight: 1kg
Shell Material: Navigational Aluminum
Power Input: 14.4V
Power Consumption: <20W
Storage: 256GB TF card (replaceable)
Operating Temperature: -20°C to 45°C
IP Rating: IP54
WiFi Distance: 20m

LIDAR

Laser Class: Class 1 / 905nm
Laser Lines: 40
FOV: 360° × (-7° to +52°)
Working Range: 0.1m–40m (10% reflectivity)
Extended Range: Up to 70m (80% reflectivity)
Scan Speed: 200,000 pts/s
Relative Accuracy: 1.2cm
Absolute Accuracy: 3cm (with RTK)

CAMERA

Quantity: 4
FOV: 360°×360°
Resolution: 48MP ×2 panoramic
Function: Colorization and visual positioning

BATTERY

Type: Fast-lock Li-ion
Capacity: 28.8Wh
Charging Time: ~2 hours
Operating Time: 1.5 hours

KEY FEATURES

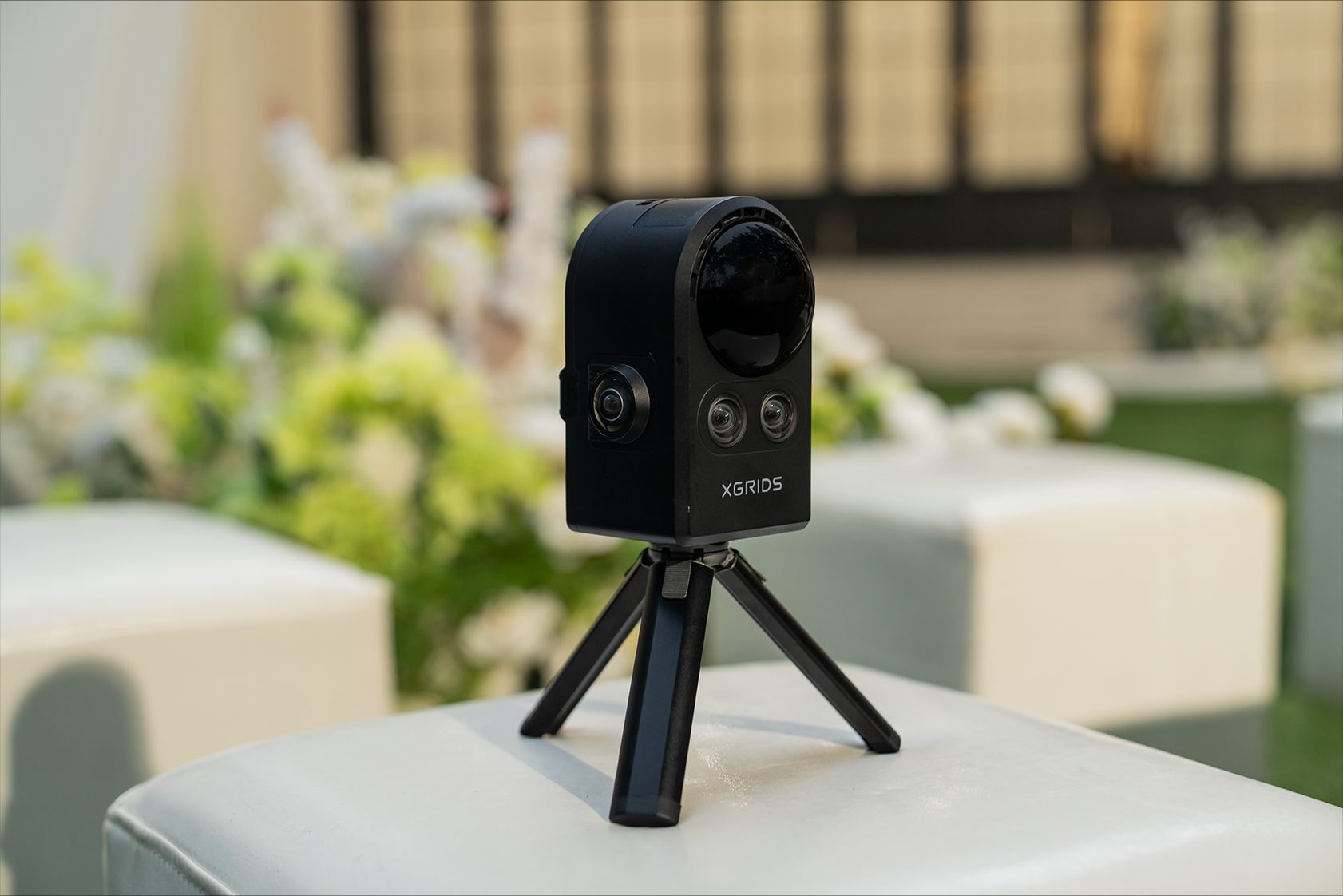

Capturing a landscaped garden with the Lixel K1

Handheld freedom for outdoor environments

Ultra-Compact Design

Weighing less than 1kg with navigational aluminum construction for maximum portability.

360° LiDAR

40 laser lines with 360° horizontal coverage for comprehensive environmental capture.

Panoramic Vision

Dual 48MP panoramic cameras providing 360°×360° coverage for stunning colorization.

Real-Time Modeling

Generate centimeter-level colorized 3D models in real-time with point cloud or LCC modes.

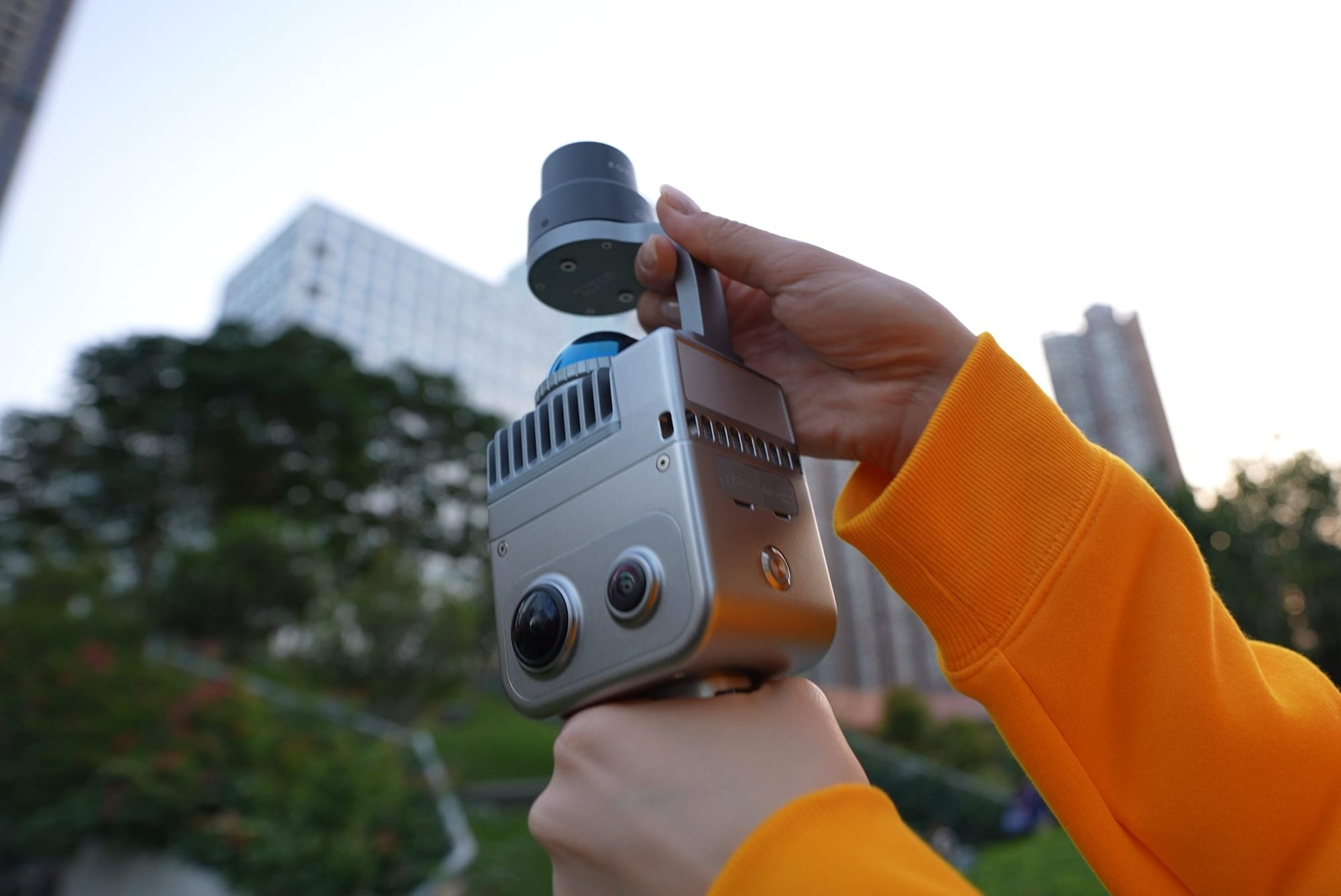

RTK Support

Optional RTK module for 3cm absolute accuracy and GPS-referenced coordinates.

Resume Scanning

Visual-aided positioning and resume from breakpoint for flexible workflow management.

LixelGo App

Control scanning, preview results in real-time, and manage settings from your mobile device.

One-Touch Operation

Field-ready in minutes with simple one-touch operation and included LixelStudio software.

ENGINEERED FOR EXCELLENCE

Designed for professionals, small businesses, and 3D enthusiasts, the K1 is field-ready in minutes and supports quick data capture for surveying, geospatial, AEC, and more. It supports RTK for absolute coordinates and GCP for accuracy enhancement. The device features real-time colorization with point cloud or LCC + point cloud modes, making it perfect for those who need professional results without the complexity.
